Reciprocating Air Compressor

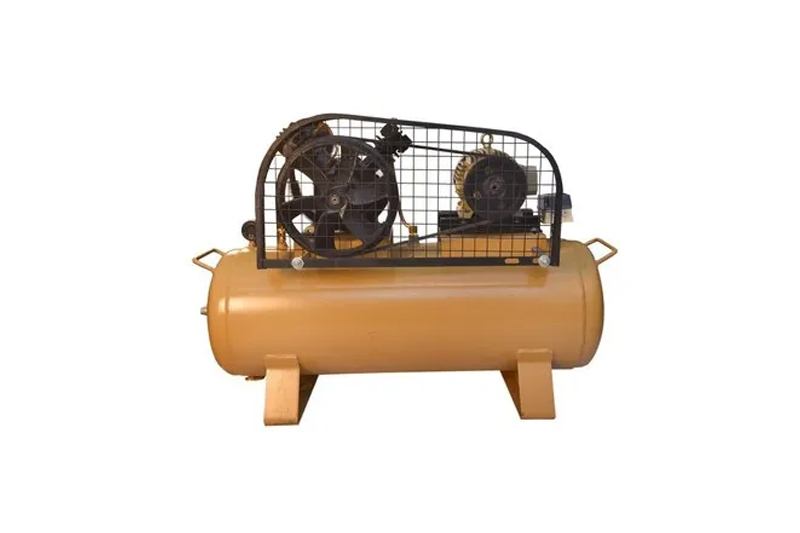

Single Stage compressors
are designed for low pressure Application. These compressors have cylinders of same size. These compressors have cylinders of same size. Configured in space-saving stationary and portable models, these durable compressors are a favourite with in the construction industry.
Features
- Efficient finger valves that are easy to maintain
- Industrial-quality cast iron construction.
- 100% continuous duty applications.
- Reliable high-speed valve design.
- Fully-balanced crankshaft that reduces vibration.
- 135 psi max. discharge pressure.
- Honda engine-driven wheel.
- Electric-Driven wheel.
|
MODEL
|
MOTOR |
Bore X Stroke (INCH)
|
No. of CYLINDER
|
Receiver Litre
|
Max Pressure | Piston Displacement | |||
| H.P. | K.W. | Psig | Kg/cm2 | Cfm | Ltr/min | ||||
| VAS-240 | 3 | 2.2 | 3" & 3" X 2.75" | 2 | 150 | 80 | 5.62 | 14.85 | 420 |
| VAS-242 | 5 | 3.7 | 4" & 4" X 2.75" | 2 | 200 | 80 | 5.62 | 23.91 | 675 |
| VAS-245 | 7.5 | 5.5 | 4" & 4" X 2.75" | 2 | 200 | 80 | 5.62 | 34.6 | 980 |
| VAS-260 | 10 | 7.5 | 5" & 5" X 3.5" | 2 | 225 | 80 | 5.62 | 52.8 | 1495 |
| VAS-12S2 | 12.5 | 9.3 | 5.5" & 5.5" X 4" | 2 | 300 | 40 | 2.81 | 88 | 2490 |
| VAS-12S2 | 15 | 11 | 5.5" & 5.5" X 4" | 2 | 300 | 40 | 2.81 | 95.4 | 2700 |
| VAS-20S2 | 15 | 11 | 5.5" & 5.5" & 5.5" X 4" | 3 | 500 | 40 | 2.81 | 99 | 2800 |
| VAS-20S2 | 20 | 15 | 5.5" & 5.5" & 5.5" X 4" | 3 | 500 | 40 | 2.81 | 140.15 | 3970 |

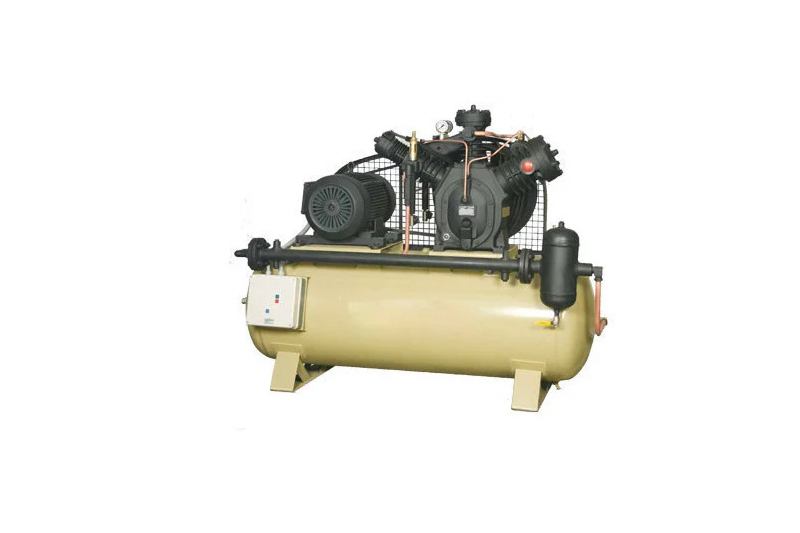

Two Stage compressors
Designed for heavy shop or industrial use, Electric-driven Two-stage air compressors provide the reliability and performance that are ideal for most applications and users including automotive service and fleet maintenance, machine shops, production and manufacturing lines, wood working shops, dry cleaners, car washes, general maintenance/repair shops.
Features
- Durable cast iron design for 100% continuous duty application
- Precision engineered components for high reliability
- Individually cast cylinders, overhung crankshaft and one piece connecting rod for ease of maintenance and service
- Reliable high-speed valve design.
- High efficiency finger valves
- 175 psig maximum operating pressure for applications requiring high air capacity and pressure
|
MODEL
|
MOTOR |
Bore X Stroke (INCH)
|
No. of CYLINDER
|
Max Pressure | Piston Displacement | |||
| H.P. | K.W. | Psig | Kg/cm2 | Cfm | Ltr/min | |||
| VAS-239 | 2.0/3.0 | 1.5/2.2 | 3" & 3" X 2.75" | 2 | 175 | 17.3 | 7.46/9.80 | 210/275 |
| VAS-239 | 2.0/3.0 | 1.5/2.2 | 3" & 3" X 2.75" | 2 | 175 | 17.3 | 7.46/9.80 | 210/275 |
| VAS-2345 | 3 | 2.2 | 3" & 3" X 2.75" | 2 | 175 | 12.3 | 9.8 | 275 |
| VAS-247 | 5 | 3.7 | 4" & 4" X 2.75" | 2 | 175 | 12.3 | 17.3 | 490 |
| VAS-2480 | 5.0/7.5 | 3.7/5.5 | 4" & 4" X 2.75" | 2 | 175 | 12.3 | 17.3/22 | 490/623 |
| VAS-258 | 7.5 | 5.5 | 5" & 5" X 3.5" | 2 | 175 | 12.3 | 22.3 | 745 |
| VAS-2600 | 10 | 7.5 | 5" & 2.75" X 3.5" | 2 | 175 | 12.3 | 33.6 | 950 |
| VAS-2550 | 7.5/10 | 5.5/7.5 | 5" & 5" X 3.5" | 2 | 175 | 12.3 | 29.8/37.8 | 845/1070 |
| VAS-76T2 | 12.5/15 | 9.3/11 | 5.5" & 5.5" X 4" | 2 | 175/200 | 12.3/14.06 | 44/55 | 1245/1556 |
| VAS-7105 | 15 | 11 | 5.5" & 5.5" X 4" | 3 | 175 | 12.3 | 55 | 1556 |
| VAS-20T | 15/20 | Nov-15 | 5.5" & 5.5" & 5.5" X 4" | 3 | 175 | 12.3 | 63.5/81.8 | 1800/2310 |
| VAS-3005 | 30 | 22 | 5.5" & 5.5" & 5.5" X 4" | 3 | 175 | 12.3 | 110 | 3110 |
Multi Stage compressors
high pressure air compressors offer durability and reliability combined with multi stage energy savings. High Pressure reciprocating compressors feature three-stage compression. maximizes efficiency with multi stages of compression, which significantly increases efficiency over three-stage designs. Combined with industrial grade components and double-acting cast iron cylinders, High pressure compressors provide supreme durability that reduces maintenance requirements and lowers lifecycle costs.
Features
- star-delta starter for energy efficient starting.
- Water-cooled design.
- Multi-stage balanced, opposed layout reduces unwanted vibration.
- Double-acting pistons with heavy-duty Class 40 cast iron cylinder construction.
- Protective features such as rod drop position wear indicators available.
|
MODEL
|
MOTOR |
Bore X Stroke (INCH)
|
No. of CYLINDER
|
Receiver | Max Pressure | Piston Displacement | |||
| H.P. | K.W. | Litre | Psig | Kg/cm2 | Cfm | Ltr/min | |||
| VAS-236 | 3 | 2.2 | 3" & 1.25" X 2.75" | 2 | 150 | 500 | 35 | 7.4 | 210 |
| VAS-12T2 | 7.5 | 5.5 | 5' & 2" X 4' | 2 | 300 | 500 | 35 | 24.7 | 700 |
| VAS-12T2 | 12.5 | 9.3 | 5 & 2" X 4" | 2 | 300 | 500 | 35 | 36 | 1020 |
| VAS-20T2 | 15 | 11 | 5.5" & 3" & 1.5/8" X 4" | 3 | 500 | 500 | 35 | 44 | 1240 |
| VAS-20T2 | 20 | 15 | 5.5" & 3" & 1.5/8" X 4" | 3 | 500 | 1000 | 70 | 49.5 | 1400 |
| VAS-20TH | 20 | 15 | 5" &5" & 3" X 4" | 3 | 500 | 355 | 25 | 70 | 1982 |
| VAS-20THD | 40 | 30 | 5" & 5" & 3" X 4" | 3 | 750 | 355 | 25 | 140 | 3965 |
| VAS-30TH | 25 | 18.5 | 5.5" & 5.5" & 3.5" X 4" | 3 | 500 | 355 | 25 | 72 | 2039 |
